Feature-Based Visualization Gallery

This gallery page showcases plots from k-diagram focused on understanding feature influence and importance. Currently, it features the Feature Importance Fingerprint plot.

Note

You need to run the code snippets locally to generate the plot images referenced below (e.g., images/gallery_feature_fingerprint.png). Ensure the image paths in the .. image:: directives match where you save the plots (likely an images subdirectory relative to this file).

Feature Importance Fingerprint

Uses plot_feature_fingerprint(). This radar chart compares the importance profiles (“fingerprints”) of several features across different groups or layers (e.g., different years or models). This example shows raw (unnormalized) importance values comparing feature influence across three years.

# Assuming plot function is in kd.plot.feature_based
import kdiagram.plot.feature_based as kdf
import numpy as np
import matplotlib.pyplot as plt

# --- Data Generation ---
features = ['Rainfall', 'Temperature', 'Wind Speed',
            'Soil Moisture', 'Solar Radiation', 'Topography']
n_features = len(features)
years = ['2022', '2023', '2024']
n_layers = len(years)

# Generate importance scores (rows=years, cols=features)
# Make them slightly different per year
np.random.seed(123)
importances = np.random.rand(n_layers, n_features) * 0.5
importances[0, 0] = 0.8 # Rainfall important in 2022
importances[1, 3] = 0.9 # Soil Moisture important in 2023
importances[2, 1] = 0.7 # Temperature important in 2024
importances[2, 4] = 0.75# Solar Radiation also important in 2024

# --- Plotting ---
kdf.plot_feature_fingerprint(
    importances=importances,
    features=features,
    labels=years,
    normalize=False, # Show raw importance scores
    fill=True,
    cmap='Pastel1',
    title="Gallery: Feature Importance Fingerprint (Yearly)",
    # Save the plot relative to this file's location
    savefig="images/gallery_feature_fingerprint.png"
)
plt.close()

🧠 Analysis and Interpretation

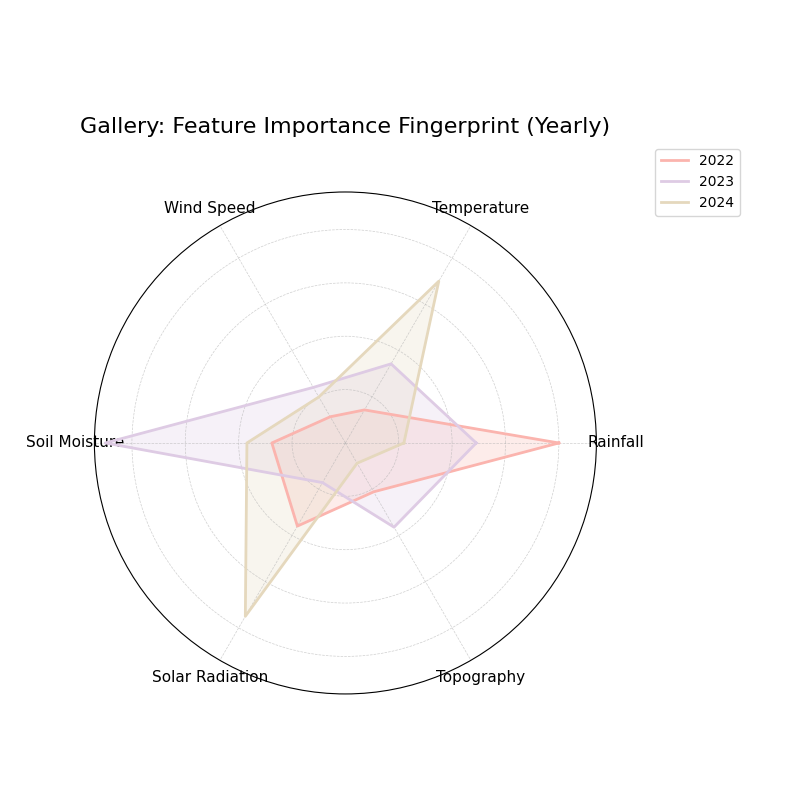

The Feature Importance Fingerprint (a radar plot) visually represents the importance of various features across different groups or “layers”. Each axis corresponds to a feature, and each colored polygon represents a layer (here, different years). The distance from the center along an axis indicates that feature’s importance for that specific layer.

Analysis and Interpretation:

• Axes: Represent Rainfall, Temperature, Wind Speed, Soil Moisture, Solar Radiation, and Topography.

• Layers (Colors/Polygons): Represent the years 2022, 2023, and 2024, showing how feature importance changes annually.

• Radius: Since normalize=False, the radius shows the raw importance score. Larger extensions along an axis mean higher importance.

• Shape (“Fingerprint”): The overall shape of each polygon gives a unique “fingerprint” of feature influence for that year.

🔍 Key Insights from this Example:

• 2022: The polygon extends furthest along the Rainfall axis, indicating it was the dominant feature in that year’s model or context.

• 2023: The Soil Moisture axis shows the largest value, suggesting a shift in primary drivers compared to 2022.

• 2024: Temperature and Solar Radiation show the highest importance, indicating another change in the factors influencing the outcome for this year.

• Comparison: We can easily see that the relative importance of features is not static but changes from year to year.

💡 When to Use This Plot:

• Compare Feature Importance: Visualize differences between models, time periods, or groups (e.g., spatial zones).

• Identify Dominant Features: Quickly see which features have the most impact for each layer.

• Analyze Importance Drift: Track how feature influence evolves over time, as shown in this yearly example.

• Model Interpretation: Understand and communicate the key drivers behind model predictions for different scenarios.
